Fuzzy Logic & Probability Theory:
模糊邏輯與概率論

Clarification towards Building a Bridge


                        Fuzzy logic and probability theory are the most powerful tools to overcome
the imperfection (see Fig.1). Fuzzy logic is mainly responsible for
representation and processing of vague data (ill-defined, fuzzy). Probability
theory is mainly responsible for representation and processing of uncertainty
(randomness).

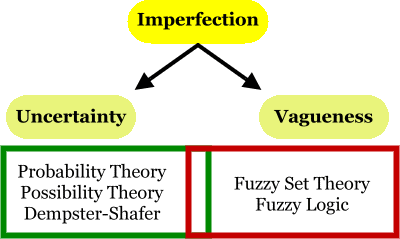

  Fig.1. Imperfection and theories to handle it.



                        Following table clarifies the differences between the two theories.








                        Probability Measure




                        Membership Function








                        Calculates the probability that an

        ill-known variable x ranging on U hits the well-known set A




                        Calculates the membership of a

        well-known variable x ranging on U hits the ill-known set A










                        Before an event happens




                        After it happened








                        Measure Theory




                        Set Theory








                        Domain is 2U (Boolean Algebra)






                        Domain is [0,1]U (Cannot be a Boolean Algebra)








                        A Bridge




                        Consider the following statements:





                        In such cases (which are very usual in pattern recognition, for instance), we
are interested in probability of an event that cannot be defined exactly.
Therefore, the only sophisticated way is to calculate the probability of a fuzzy
event represented by a fuzzy set:









                        Probability space









                        Membership function










                        The probability of the fuzzy event F








                        For more details see following papers/books:




                        1.

                          Probability measures of fuzzy events, L.A.Zadeh, Journal Math.
    Anal. Appl., vol 23, pp. 421-427, 1968


                        2.

                          Fuzzy Sets as a basis for a theory of possibility, L.A. Zadeh,
    Fuzzy Sets and Systems, vol. 1, pp. 3-28, 1978


                        3.

                          Possibility Theory, D.Dubois, H. Prade, Plenum Press, 1988


                        4.

                          Fuzzy sets and probability : Misunderstandings, bridges and gaps,
    D.Dubois, H. Prade, Proc. of the Second IEEE Inter. Conf. on Fuzzy Systems,
    volume 2, pp. 1059-1068, 1993
